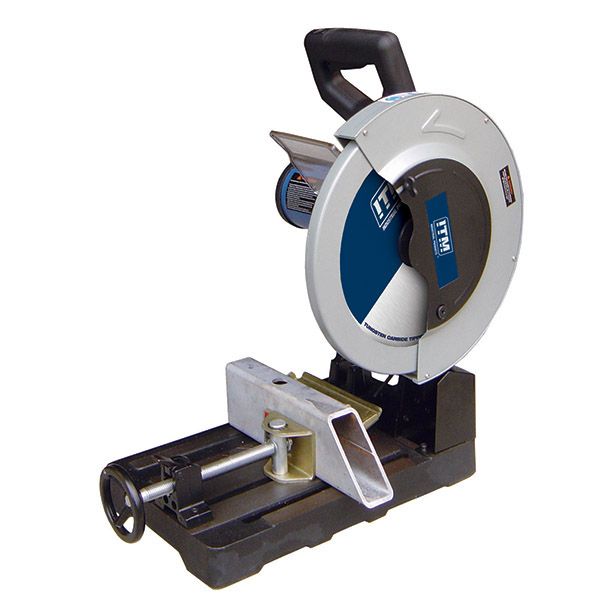

ITM 350MM METAL CUTTING DROP SAW, 240V, INC. TCT MILD STEEL BLADE

Stock Code:
S14
Brisbane:
In Stock

Stock Locations

  • Melbourne:
    In Stock
  • Perth:
    In Stock
  • Tasmania:
    In Stock
RRP:
$919.00

Features

  • 350mm Tungsten Carbide Tipped blade.
  • Saves time & money giving cool cuts that need little to no finishing, eliminating any need for grinding or cool down time.
  • The fully enclosed retractable guard increases user safety.
  • Heavy-duty vice 90° - 45°.
  • Pipe vice attachment.
  • For cutting mild steel and aluminium.
  • For cutting stainless steel, the ITM Cermet Blades must be purchased in addition.
  • 12 months warranty.
  • Supplied with a Tungsten Carbide Tipped mild steel blade.

Specifications

Motor 3hp Single Phase (240V)
Blade Speed Single Speed 1450rpm
Blade Size 350mm
Blade Bore 25.4mm
Weight 29kg

Cutting Capacity
Cutting Angle Solid Round Round Square Rectangle
90° 25mm 120mm 120mm 120 x 120mm
45° 25mm 90mm 90mm 120 x 90mm




Replacement Blades:
  • SSBL350-MS for mild steel to 25.4mnm
  • SSBL350-TS for thin mild steel to 6mm
  • SSBL350-AL for aluminium to 25.4mm
  • SSBL350-CERMET64 for Stainless Steel to 25mm
  • SSBL350-CERMET110 for Stainless Steel to 6mm

Description



Ultra High Performance Cermet Carbide Tipped Blades Now Available

  • Up to 3 times longer life than standard metal cutting T.C.T. blades.
  • Saves time & money, giving cool cuts that need little to no finishing.
  • Superior hardness, wear and heat resistance.
  • Available as 64 teeth for general purpose and 110 teeth for thin material.


14" 64 TEETH - GENERAL PURPOSE
CERMET CARBIDE TIPPED BLADE
Part No. SSBL350-CERMET64

  • Blade Diameter: 355mm (14”)
  • Number of Teeth: 64
  • Blade Bore: 25.4mm (1”)
  • Blade Kerf: 2.4mm
  • Blade Thickness: 2.0mm
  • Max. RPM: 1500

Solid Thickness

  • Mild Steel: Max. 25mm, Min. 4mm
  • Stainless Steel: Max. 10mm, Min. 4mm
Wall Thickness
  • Mild Steel: Max. 12mm, Min. 2mm
  • Stainless Steel: Max. 5mm, Min. 2mm


14" 110 TEETH - THIN METALS
CERMET CARBIDE TIPPED BLADE
Part No. SSBL350-CERMET110

  • Blade Diameter: 355mm (14")
  • Number of Teeth: 110
  • Blade Bore: 25.4mm (1")
  • Blade Kerf: 2.1mm
  • Blade Thickness: 1.7mm / 1.9mm
  • Max. RPM: 1500
  • Coating: Flourine
Solid Thickness
  • Mild Steel: Max. 25mm, Min. 4mm
  • Stainless Steel: Max. 10mm, Min. 4mm
Wall Thickness
  • Mild Steel: Max. 12mm, Min. 2mm
  • Stainless Steel: Max. 5mm, Min. 2mm
